automotive terminal block connector
- FOB Price
US $3.61000 - 3000 piece
US $3.33001 - 5000 piece
US $3.15001 - 10000 piece
- group name
- Connector
- Min Order
- 1000 piece
- brand name
- Xinle Electronic Components Supplier
- model
- EV-T2CCS-PARK
- Nearest port for product export
- Shenzhen
- Delivery clauses under the trade mode
- FOB, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 18:13:33 GMT
Paramtents
Type of signal transmission Pulse width modulation with modulated Powerline co
Note on the connection method Crimp connection, cannot be disconnected
Insulation resistance > 200 MΩ
Coding 4.7 kΩ (between PE and PP
Temperature measurement DC contacts: 2x PT1000 (DIN EN 60751)
Temperature monitoring AC contacts: PTC chain (DIN EN 60738-1)
Type of charging current AC 3-phase
Charging power 26 kW
Charging current 32 A
Charging powe 125 kW
Packging & Delivery
- 10cm x12cm x15cm
-
Min Order1000 piece
Briefing

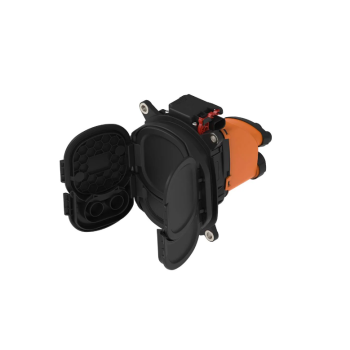

Vehicle charging inlet for charging with direct current (DC), compatible with type 2 CCS vehicle charging connectors (EVSE), for installation in
electric vehicles (EV).
electric vehicles (EV).
Detailed
Connector--Xi'an Xinle Electronic Technology Co.,Ltd
• Complete product range
• Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
• Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
• Integrated interlock during charging
• Manual emergency release of the locking actuator
• Protected and sealed against dirt and water with a high degree of protection
with direct current (DC), CCS type 2, IEC 62196-2, IEC 62196-3, 125 A / 1000 V (DC), 32 A /
480 V (AC), Single wires, length: 2 m, locking actuator: 12 V, 4-pos., Front and rear mounting,
M6, housing: black, A protective cap is supplied as standard for the DC and AC contacts.
Product description
Vehicle charging inlet for charging with direct current (DC), compatible with type 2 CCS vehicle charging connectors (EVSE), for installation in
electric vehicles (EV).
Commercial data
Item number 1270310
Packing unit 1 pc
Minimum order quantity 1 pc
Sales key EM01
Product key XWCAID
GTIN 4063151440589
Weight per piece (including packing) 4,546 g
Weight per piece (excluding packing) 4,546 g
Customs tariff number 85444290
Country of origin P
