Simple led driver diagram explanation dimmer circuit using transistor with transformer
- FOB Price
US $3.0010 - 1,000 piece
US $2.051,001 - 5,000 piece
US $1.895,001 - 10,000 piece
- group name
- LED Driver Boards
- Min Order
- 10 piece
- brand name
- Xinle Electronic Components Supplier
- model
- XD-20VATDN
- Nearest port for product export
- Shenzhen
- Delivery clauses under the trade mode
- FOB, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 17 May 2024 09:48:50 GMT
Paramtents
Input Voltag： 100-140V / 185-265V
Dimming Range： 0-100%
Efficiency： 86%
Power Factor ： PF>0.95
Environment： -15-50℃
Dimensions： L100×W17×H11
Packging & Delivery
- 44cm x 30cm x 34cm
-
Min Order10 piece
Briefing
Simple LED Driver Circuit: Transistor-Based Dimmer with Transformer
Detailed
Simple led driver diagram explanation dimmer circuit using transistor with transformer
√ Non isolated fluorescent lamp with controllable silicon dimming
√ High PF>0.95
√ High efficiency
√ Smooth dimming without flicker
√ Compatible with universal dimmers
√ Better post cutting effect
√ Good reliability and a 3-year warranty
√ Other output parameters can be designed according to customer requirements
Specifications
Treatment | |||
Input Voltag： | 100-140V / 185-265V | ||
Dimming Range： | 0-100% | ||
Efficiency： | 86% | ||
Power Factor ： | PF>0.95 | ||
Environment： | -15-50℃ | ||
Dimensions（mm）： | L100×W17×H11 | ||
Output Voltage： | 40-80V | ||
Output Current： | 180-240MA | ||
Dimming mode: | Thyristor | ||
Weight（G）: | 20G | ||
Warranty: | Warranty 3-5 years | ||
Detail Image

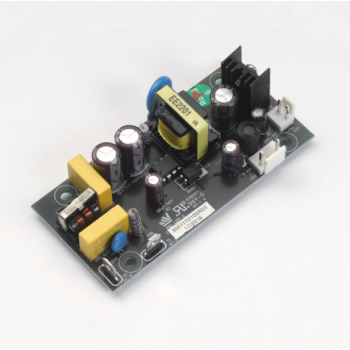

Main Picture1
Main Picture2
Download Document
FAQ
-How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product's quality. lf you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
- What can I get the price?
We usually quote within 24 hours after we get your inquiry. lf you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Applications
Outdoors
Lighting Design
Lighting
